Nylon PA6/612

Versions

Pure

Carbon Fiber

Glass Fiber

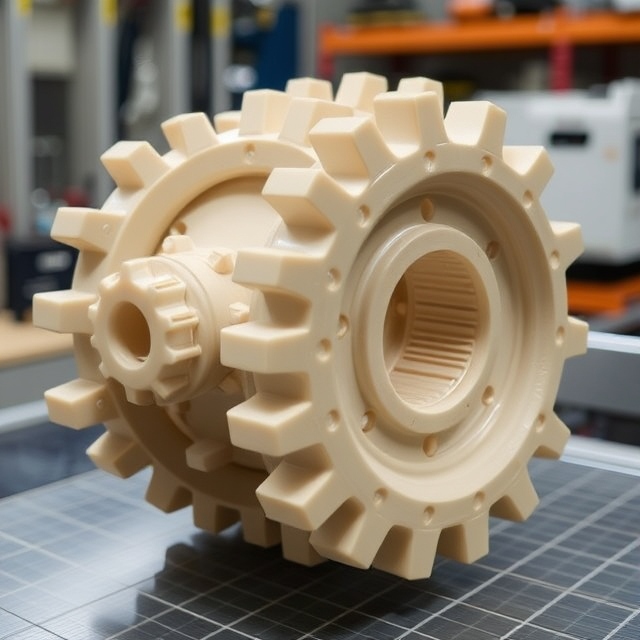

It is a linear, semi-crystalline polymer composed of repeating p-phenylene units. The number 6 in the name refers to the fact that there are six carbon atoms in the repeating unit. Nylon 6 is made by ring-opening polymerization of caprolactam. The fibers are tough but retain high tensile strength and elasticity. It is extremely resistant to wear and has low friction with good electrical insulation. In addition, it has excellent chemical resistance. It is ideal for components that move and slide such as bearings, gears, and electronic connectors.



Mechanical load capacity

high

Stiffness

high

Wear resistance

very high

Density [g/cm3]

1,17

Young`s Modulus [MPa]

7453

Elogation at Break

3 %

Ultimate Tensile Strenth [MPa]

105

Heat Deflection Temperature [°C]

200

Resistance to acids

No

Resistance to alkalis

No

Resistance to oils and grease

Yes

Resistance to UV

Yes

FDA Conform

No

Versions

Pure, Carbon Fiber, Glass Fiber
