MCM0.05 Metal
Print Metal. Redefine Possibilities.
MCM0.05 Metal, a fusion of traditional Fused Deposition Modeling technology with advanced metal 3D printing capabilities.
Specs
Highlight specifications
Supported materials
Printhead
Temperature Nozzle (H1 – Extreme)
Print speed
Polymers and Metals
Direct Drive Extrusion
up to 500°C
up to 160mm/sec.
All specifications
Technology
Printhead
Print volume
Filament-Diameter
FDM/FFF
Direct Drive Extrusion
X: 270 Y: 255 Z: 210 mm
1.75mm
Layer hight
XYZ-layer resolution
Print speed
Print surface
0.04 – 0.6mm
0.05mm
up to 160mm/sec.
Heated Printbed
Temperatures Printbed
Printbed levelling
Nozzle diameter
Feeder-type
up to 150°C
Manual or active levelling
0.4mm (replaceable 0.1 – 0.8mm)
Direct Drive Extrusion
Temperature Nozzle (H1 – Extreme)
Temperature Nozzle (H2 – Extreme)
Heating time nozzle
Heating time bed (20-80°C)
up to 500°C
up to 500°C
1 – 2 min
< 4min
Operating noise
Power adapter
Filament Runout
Connectivity
<60dB
1000W
Active runout sensor
WIFI, USB port, SD port
Display
Supported languages
Supported Materials
TFT Touch Display
German, English, Italian
Polymers and Metals
Working Current (Output)
DC Voltage
Rated Current
Rated Power
24V
14.6A
350.4W
Input
Voltage Range
Frequency Range
AC Current
Leakage Current
Power consumption
90 ~ 264VAC 127 ~ 370VDC
47 ~ 63Hz
4A/115VAC 2A/230VAC
<0.75mA / 240VAC
max. 1000W
Protection
Overload
Over Voltage
Over Temperature
110~140% rated output power (Protection type: Hiccup mode, recovers automatically after fault condition is removed)
26.4 ~ 31.2V (Protection type: Shut down O/P voltage, re-power on to recover)
Protection type: Shut down O/P voltage, recovers automatically after temperature goes down
Environment
Working Temp.
Working Humidity
0-32°C
10-80% RH non-condensing
Safety & EMC
Safety Standards
EMC-Emission
EMC Immunity
EN60950-1: 2005 (second edition) + Am1: 2009 + Am2: 2013
Compliance to EN55032: 2015 + A11:2020, Class A
Compliance to EN55035: 2017 + A11: 2020, Test Standards: EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, Pass
Others
Dimension (Product)
Weight
Warranty
570 x 660 x 660 mm (LxWxH)
30kg
24 Month
Forge the Future –
3D Printing in Metal
Revolutionizing Production – Precision Metal 3D Printing for the Future.
Print high-performance metals like stainless steel with precision and strength. Unlock new possibilities for aerospace, medical, and industrial applications.
Direct Drive Extrusion
Nozzle diameters: 0,4 – 0,8 mm
Compatible Materials
Stainless Steel 316L
316L stainless steel is a corrosion-resistant, low-carbon alloy ideal for marine and medical applications. It offers excellent strength, weldability, and durability in harsh environments.
Stainless Steel 17-4
17-4 stainless steel is a precipitation-hardened alloy known for its high strength and moderate corrosion resistance. It’s commonly used in aerospace, chemical, and mechanical components.
Bronze
Bronze is a copper-based alloy with excellent wear resistance and low friction properties. It is widely used for bushings, bearings, and decorative items due to its durability and aesthetic appeal.
Chopper
Copper is a highly conductive metal with excellent thermal and electrical properties. It’s essential in electrical wiring, heat exchangers, and decorative arts.
M300 Tool Steel
M300 is a maraging tool steel offering ultra-high strength and toughness with good machinability. It’s used in high-performance tools, molds, and aerospace parts.
6061 Aluminium
6061 aluminum is a lightweight, versatile alloy known for its good corrosion resistance and weldability. It’s widely used in structural applications, transportation, and consumer goods.
High carbon Iron
High carbon iron contains a significant amount of carbon, making it very hard and wear-resistant. It is typically used in cutting tools, springs, and high-strength components but is more brittle than lower carbon steels.
Titanium
Titanium is a strong, lightweight metal with excellent corrosion resistance. It’s commonly used in aerospace, medical implants, and high-performance applications.
Inconel 718-34
Inconel 718-34 is a high-strength, nickel-based superalloy designed for extreme temperatures and pressure. It’s ideal for turbine engines, aerospace, and high-stress industrial components.
H13 Tool Steel
H13 is a chromium hot-work tool steel known for its excellent toughness, heat resistance, and wear performance. It is widely used in die casting, extrusion tools, and hot forging applications.
Tungsten
Tungsten is an extremely dense metal with the highest melting point of all elements. It’s used in high-temperature applications, electrical contacts, and radiation shielding.
Physical Dimensions
With 570mm
Depht 660mm
Height 660mm
Weight 35kg/77.16lbs
Build Volume
With 270mm
Depht 255mm
Height 210mm
Printing Process
FDM/FFF
Printing Media
Bound Powder Filament
XYZ – layer resolution
0.05mm
Print Bed
Heated Printbed, up to 150°C,
Manual or active levelling
Compatible Materials
Stainless Steel 316L
316L stainless steel is a corrosion-resistant, low-carbon alloy ideal for marine and medical applications. It offers excellent strength, weldability, and durability in harsh environments.
Stainless Steel 17-4
17-4 stainless steel is a precipitation-hardened alloy known for its high strength and moderate corrosion resistance. It’s commonly used in aerospace, chemical, and mechanical components.
Bronze
Bronze is a copper-based alloy with excellent wear resistance and low friction properties. It is widely used for bushings, bearings, and decorative items due to its durability and aesthetic appeal.
Chopper
Copper is a highly conductive metal with excellent thermal and electrical properties. It’s essential in electrical wiring, heat exchangers, and decorative arts.
M300 Tool Steel
M300 is a maraging tool steel offering ultra-high strength and toughness with good machinability. It’s used in high-performance tools, molds, and aerospace parts.
6061 Aluminium
6061 aluminum is a lightweight, versatile alloy known for its good corrosion resistance and weldability. It’s widely used in structural applications, transportation, and consumer goods.
High carbon Iron
High carbon iron contains a significant amount of carbon, making it very hard and wear-resistant. It is typically used in cutting tools, springs, and high-strength components but is more brittle than lower carbon steels.
Titanium
Titanium is a strong, lightweight metal with excellent corrosion resistance. It’s commonly used in aerospace, medical implants, and high-performance applications.
Inconel 718-34
Inconel 718-34 is a high-strength, nickel-based superalloy designed for extreme temperatures and pressure. It’s ideal for turbine engines, aerospace, and high-stress industrial components.
H13 Tool Steel
H13 is a chromium hot-work tool steel known for its excellent toughness, heat resistance, and wear performance. It is widely used in die casting, extrusion tools, and hot forging applications.
Tungsten
Tungsten is an extremely dense metal with the highest melting point of all elements. It’s used in high-temperature applications, electrical contacts, and radiation shielding.
3 Step process explained
In Metal – 3D printing, the part is built layer by layer using a metal powder and binder mixture. During finishing, it is cleaned and compacted before sintering in a high-temperature furnace, where the binder burns away, and the metal fuses into a solid, precise component.
1. Step: Printing
2. Step: Debinding

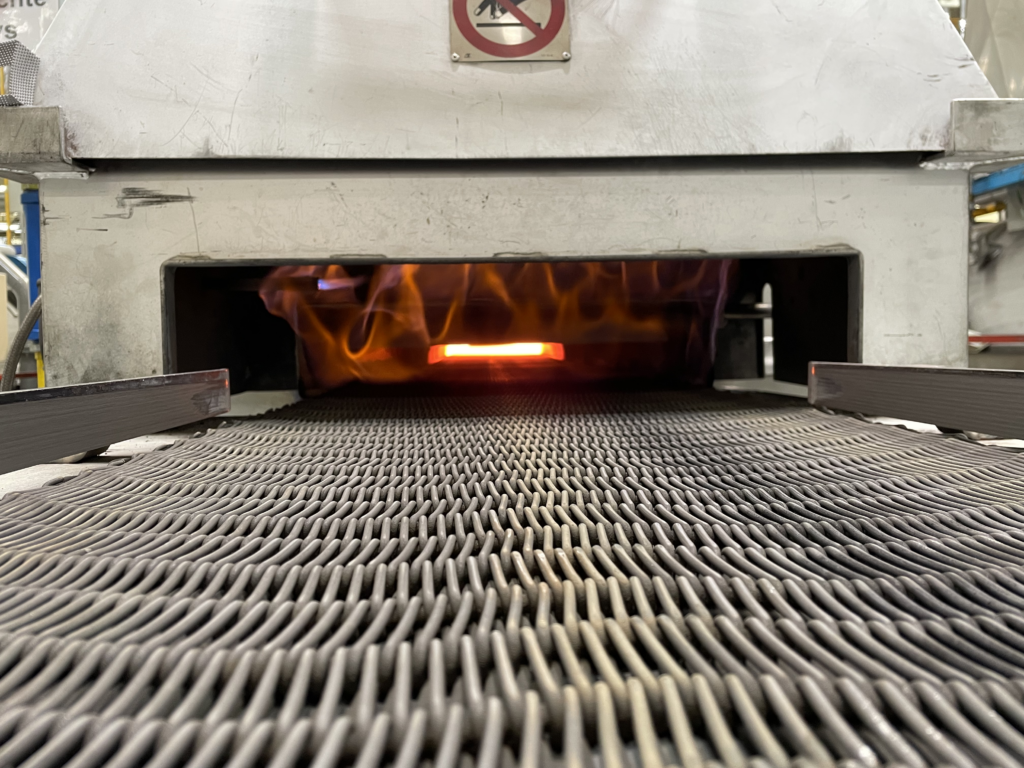

3. Step: Sintering

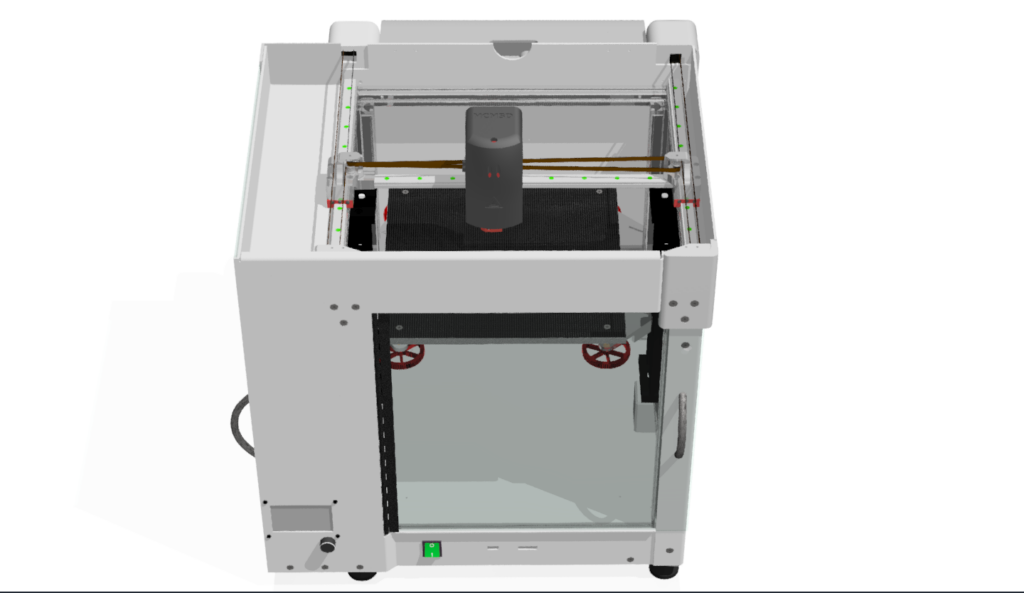

The MCM 0.05 Metal Printer is an excellent solution for manufacturing high-quality industrial metal parts with precision and efficiency.
Precision Frozen at 0.05mm.
achieve intricate designs, detailed prototypes, and flawless engineering parts.
MCM3D 3D printers are renowned for their exceptional precision and accuracy, delivering flawless results down to 0.05mm.
0.05mm
Precision
Cool Performance, Unlimited Possibilities.
Master Every Detail with Direct Drive Extrusion.
The MCM3D 3D printer features water-cooled nozzle, ensuring consistent heat management for flawless prints. With temperatures reaching up to 500°C and wear resistant printhead
Direct Drive Extrusion
Nozzle diameters: 0,1 – 0,8 mm
Stay in Control, Anytime, Anywhere.
AI-Powered Monitoring, Effortless Control.
With AI-assisted software, you can monitor and manage your prints remotely, ensuring flawless results. Receive instant notifications and pause the print if anomalies are detected, while the filament sensor provides precise control, preventing issues like filament shortage or clogging.
AI-Based Control App
and safety sensors
extended connectivity
SD, USB, WIFI and Ethernet
Real-time monitoring via webcam for constant supervision.
Speed
Our printers handle even the highest speeds with ease – delivering fast and precise results without compromise!
Noise
Whisper-quiet under 50 dB, precise to the finest detail – your 3D printer for powerful results without the noise.
price efficiency
Outstanding performance at an unbeatable price – significantly more affordable than the competition!
Trusted By Our Partners
Metal printing made as easy as paper
Your business, your designs, your future!
MCM3D 0.05 PRO
The MCM3D 3D printer delivers exceptional precision (up to 0.05mm) and features a liquid-cooled dual nozzle system and a fully enclosed heated chamber for working with high-performance materials. With smart features like filament sensors, a drying station, and power-loss recovery, it ensures seamless, reliable prints – the perfect choice for innovative businesses.
