MCM0.05 PRO
Precision. Power. 3D Printing.
Our innovative industrial 3D printer delivers top precision, speed, and efficiency—send your inquiry now and take your production to the next level!
Specs
Highlight specifications
Heated chamber max temperature
Dual extruder build volume (XYZ)
Single extruder build volume (XYZ)
Heated build plate
100 °C
305 x 305 x 320 mm (12 x 12 x 12.6 in)
305 x 340 x 320 mm (12 x 13.4 x 12.6 in)
Heated build plate with removable, flexible build surface
All specifications
Technology
Printhead
Print volume
Filament-Diameter
FDM/FFF
Dual extrusion for high performance filaments
X: 270 Y: 255 Z: 210 mm
1.75mm
Layer hight
XYZ-layer resolution
Print speed
Print surface
0.04 – 0.6mm
0.05mm
up to 160mm/sec.
Heated Printbed
Temperatures Printbed
Printbed levelling
Nozzle diameter
Feeder-type
up to 150°C
Manual or active levelling
0.4mm (replaceable 0.1 – 0.8mm)
Bowden Dual Gear Extruder
Temperature Nozzle (H1 – Extreme)
Temperature Nozzle (H2 – Extreme)
Heating time nozzle
Heating time bed (20-80°C)
up to 500°C
up to 500°C
1 – 2 min
< 4min
Operating noise
Power adapter
Filament Runout
Connectivity
<60dB
1000W
Active runout sensor
WIFI, USB port, SD port
Display
Supported languages
Supported Materials
TFT Touch Display
German, English, Italian
PLA, ABS, PETG, TPU, ASA, PC, PVA, PET, Carbon, PA, Nylon, Wood, Hips, PEEK, PP, ULTEM, PVC, PVB, Glow in the dark, …
Working Current (Output)
DC Voltage
Rated Current
Rated Power
24V
14.6A
350.4W
Input
Voltage Range
Frequency Range
AC Current
Leakage Current
Power consumption
90 ~ 264VAC 127 ~ 370VDC
47 ~ 63Hz
4A/115VAC 2A/230VAC
<0.75mA / 240VAC
max. 1000W
Protection
Overload
Over Voltage
Over Temperature
110~140% rated output power (Protection type: Hiccup mode, recovers automatically after fault condition is removed)
26.4 ~ 31.2V (Protection type: Shut down O/P voltage, re-power on to recover)
Protection type: Shut down O/P voltage, recovers automatically after temperature goes down
Environment
Working Temp.
Working Humidity
0-32°C
10-80% RH non-condensing
Safety & EMC
Safety Standards
EMC-Emission
EMC Immunity
EN60950-1: 2005 (second edition) + Am1: 2009 + Am2: 2013
Compliance to EN55032: 2015 + A11:2020, Class A
Compliance to EN55035: 2017 + A11: 2020, Test Standards: EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, Pass
Others
Dimension (Product)
Weight
Warranty
570 x 660 x 660 mm (LxWxH)
30kg
24 Month
Precision Frozen at 0.05mm.
achieve intricate designs, detailed prototypes, and flawless engineering parts.
MCM3D 3D printers are renowned for their exceptional precision and accuracy, delivering flawless results down to 0.05mm.
0.05mm
Precision
Physical Dimensions
With 570mm
Depht 660mm
Height 660mm
Weight 30kg/66,14lbs
Build Volume
With 270mm
Depht 255mm
Height 210mm
Printing Process
FDM/FFF
Printhead
Dual Extrusion
Chamber
Enclosed Heated Chamber (100°C)
Extreme Temperatures
Heated Printbed, up to 150°C, water-cooled Hotend 500°C
Lots of compatible materials for example:
PEKK
PEKK is a high-performance thermoplastic from the PAEK family, known for strength, heat and chemical resistance, and flame retardancy. It offers low moisture absorption and good printability, making it ideal for aerospace, automotive, and medical parts.
PEEK
PEEK is a high-performance thermoplastic with excellent strength, heat resistance up to 260 °C, and strong chemical and wear resistance. Biocompatible and durable, it’s used in aerospace, automotive, medical, and industrial fields. Printing PEEK requires specialized high-temperature equipment.
TPI
TPI is a high-performance 3D printing material with excellent thermal stability, chemical resistance, and mechanical strength. It withstands extreme temperatures, making it ideal for aerospace, automotive, and industrial uses. TPI requires high-temperature processing and specialized equipment.
PPS
PPS is a high-performance 3D printing material with excellent heat, chemical, and mechanical resistance. It withstands over 200 °C, resists solvents and fuels, and offers low moisture absorption and great dimensional stability. Ideal for demanding aerospace and industrial parts, it requires high extrusion temperatures.
PEI
PEI is a high-performance 3D printing material with excellent heat resistance, strength, and chemical stability. Ideal for aerospace, automotive, and electronics, it delivers durable parts but needs high printing temperatures and an enclosed chamber.
PPA
PPA is a high-performance thermoplastic with excellent strength, heat, and chemical resistance. It absorbs little moisture and offers great durability and stability, making it ideal for tough automotive, aerospace, and industrial applications.
PLA
PLA is a user-friendly 3D printing material with great tensile strength, surface quality, and high-speed printability. Ideal for home and office use, it’s available in many colors and suits tools, toys, models, prototypes, and decorative items.
Nylon PA6/612
Nylon 6 is a semi-crystalline polymer made from caprolactam. It is strong, elastic, wear-resistant, and chemically stable. With low friction and good insulation, it’s ideal for parts like bearings, gears, and connectors.
Nylon PA12
Nylon PA12 is a durable 3D printing material with excellent strength, flexibility, and chemical resistance. It absorbs little moisture and is ideal for prototypes, industrial parts, and end-use products in automotive, aerospace, and medical fields.
HIPS
HIPS is a strong, rigid 3D printing material often used as dissolvable support for ABS. It offers good layer adhesion, a smooth finish, and is easy to sand and paint. Lightweight and impact-resistant, it suits both functional and decorative parts.
PC-PBT
PC-PBT is a high-performance 3D printing material combining the toughness of polycarbonate with the chemical resistance and flexibility of PBT. It offers excellent impact strength, dimensional stability, and durability, making it ideal for automotive, industrial, and electrical applications.
PP
Polypropylene (PP) is a lightweight, durable, and chemically resistant 3D printing material with high flexibility, impact resistance, and low moisture absorption. Ideal for prototypes and automotive parts, it offers good fatigue resistance but can be challenging to print due to warping.
ASA
ASA (Acrylonitrile Styrene Acrylate) is a durable thermoplastic with excellent weather resistance and UV stability, making it ideal for outdoor applications. It offers better color retention and resistance to environmental factors than ABS, with a smooth, glossy finish suitable for functional prototypes, automotive parts, and outdoor equipment.
ABS
This thermoplastic is known for outstanding impact resistance, durability, and scratch resistance. It has a low melting point, high weldability, and a strong strength-to-weight ratio, making it ideal for injection molding and widely used in manufacturing, automotive, and marine industries.
Extreme Temperatures, Flawless Results.
Perfect prints – powered by a sealed chamber and extreme temperatures.
The fully enclosed, heated chamber enables the use of high-performance materials for the most demanding projects.(PEEK, Carbon, ect.) With a heated bed and liquid-cooled nozzles reaching up to 500°C, the MCM3D 3D printer delivers unmatched quality and precision.
500°C
watercooled extreme Hotend
150°C
Print Bed
100°C.
enclosed chamber
Cool Performance, Unlimited Possibilities.
Master Every Detail with Dual-Extrusion Precision.
The MCM3D 3D printer features water-cooled dual nozzles, ensuring consistent heat management for flawless prints. With temperatures reaching up to 500°C, it handles a wide range of materials with ease and precision.
Dual Extruders
With Auto-rising System
Nozzle diameters: 0,1 – 0,8 mm
Stay in Control, Anytime, Anywhere.
AI-Powered Monitoring, Effortless Control.
With AI-assisted software, you can monitor and manage your prints remotely, ensuring flawless results. Receive instant notifications and pause the print if anomalies are detected, while the filament sensor provides precise control, preventing issues like filament shortage or clogging.
AI-Based Control App
For Android and Iphone
Supported by filament sensors, camera
and safety sensors

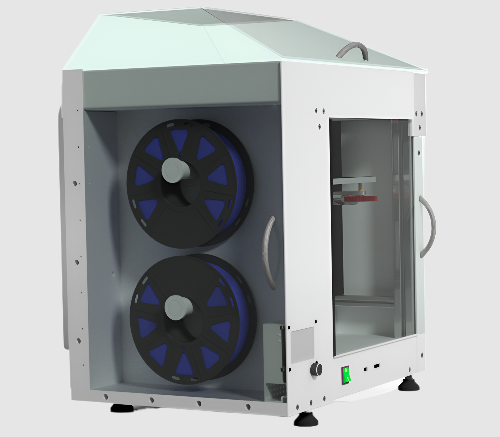

Filament Drying Station
Filaments absorb moisture from the air, affecting print quality. With the MCM0.05, your filament stays dry and ready for flawless printing—no hassle, no compromises.
Filament Drying Station
Filaments absorb moisture from the air, affecting print quality. With the MCM0.05, your filament stays dry and ready for flawless printing—no hassle, no compromises.
extended connectivity
SD, USB, WIFI and Ethernet
Real-time monitoring via webcam for constant supervision.
Speed
Our printers handle even the highest speeds with ease – delivering fast and precise results without compromise!
Noise
Whisper-quiet under 50 dB, precise to the finest detail – your 3D printer for powerful results without the noise.
price efficiency
Outstanding performance at an unbeatable price – significantly more affordable than the competition!
Trusted By Our Partners

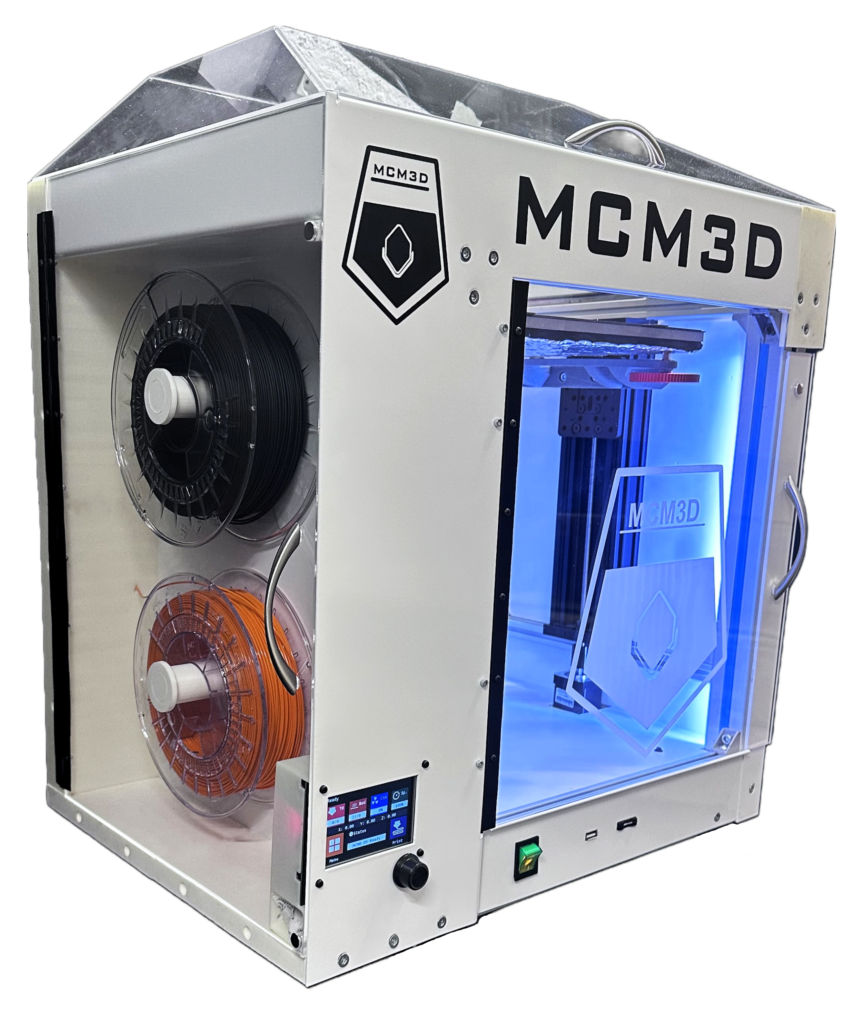

MCM3D 0.05 Pro
The MCM3D 3D printer delivers exceptional precision (up to 0.05mm) and features a liquid-cooled dual nozzle system and a fully enclosed heated chamber for working with high-performance materials. With smart features like filament sensors, a drying station, and power-loss recovery, it ensures seamless, reliable prints – the perfect choice for innovative businesses.
